General:
Lines feed boxes are used for the connection of the feeder cable on any random point of the system. The feeder cable is connected to line feed clamps, kept in place by the line clamp holder that is partly slided over the 2 housing parts in which up to 7 line feed clamps can be fitted. The copper conductors will not be interrupted. Basis of all the line feed boxes is the modular collar that is fitted with push through holes to fit various glands M32 to M63 in size. For custom configurations, you can easily add glands
by removing the pre-cut sections.
The line feed clamp holder (LCH or LH) connects 2 adjacent rail housings and holds the line feed clamps at the same time. The principle is a 90–120 mm Line feed clamp holder that slides over 2 housing parts. Then it is screwed on the sides. Line feed clamps are fitted, copper goes through the line feed clamps and is connected to a power cable. Cover comes over the collars and clicks into position.
Line feed boxes types LB:
Type LB40
Line feed box for connection of copper conductors up to 125A. With 1 gland M40 for cables Ø16-Ø28 mm.
Type LB63
Line feed box for connection of copper conductors up to 160A. With 1 gland M63 for cables Ø30-Ø44,5 mm.

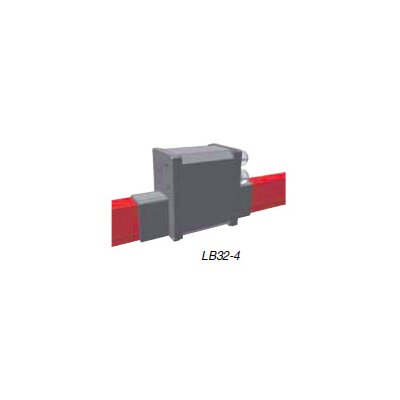

Type LB32-4
Similar to LB6, but with 4 glands M32 for cables Ø10-Ø21 mm.
Type LB32-7
Similar to LB32-4, but with 7 glands M32 for cables Ø10-Ø21 mm.
Line feed clamp holders:

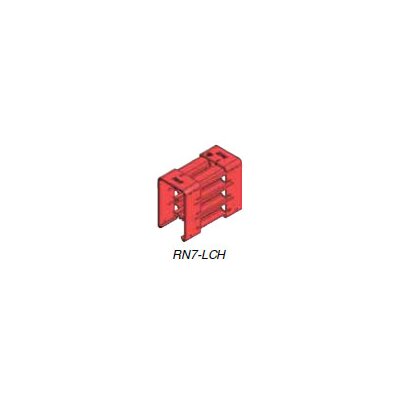

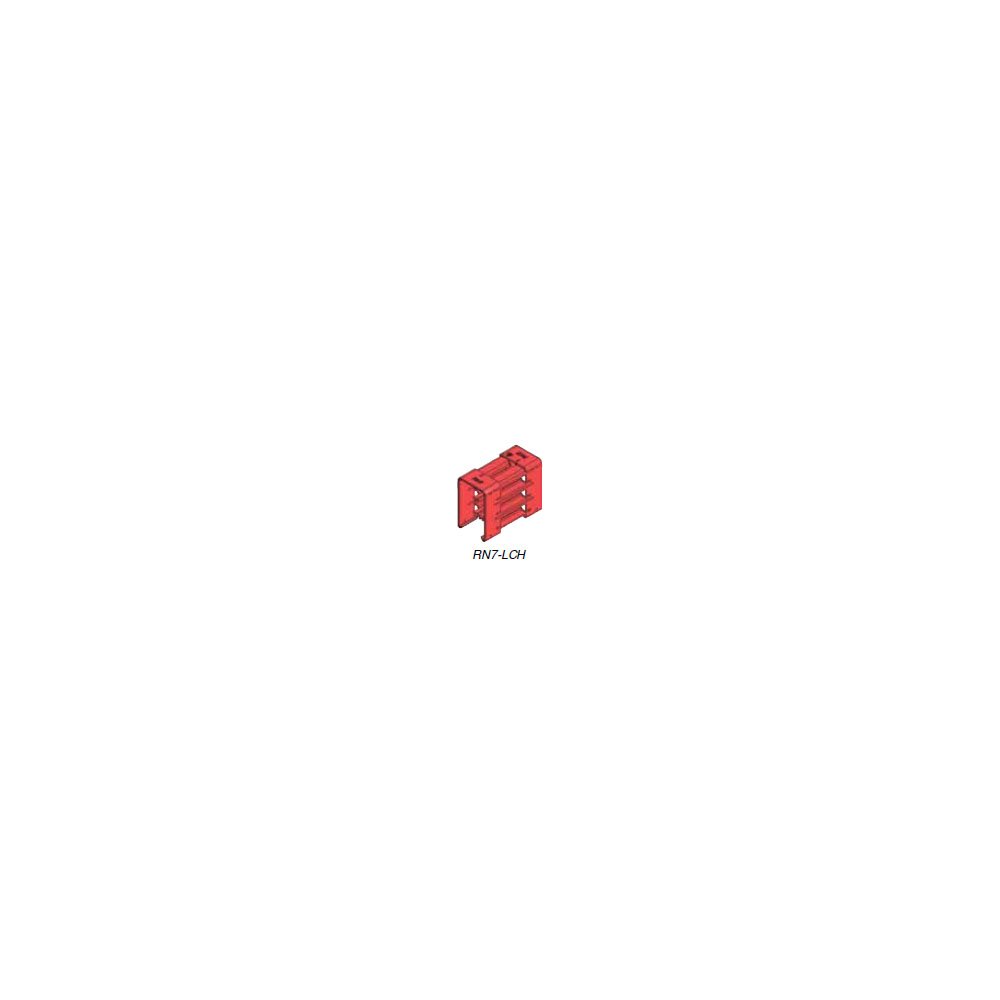

Type RN7-LCH
Applicable for line feed connections with continuous copper (all sizes), irrespective the number of poles. The required line feed clamps have to be ordered seperately.
Type RNHS7-LCH
Similar to RN7-LCH, but with spacer strips for use with extra hand-safe housing RNHS7.

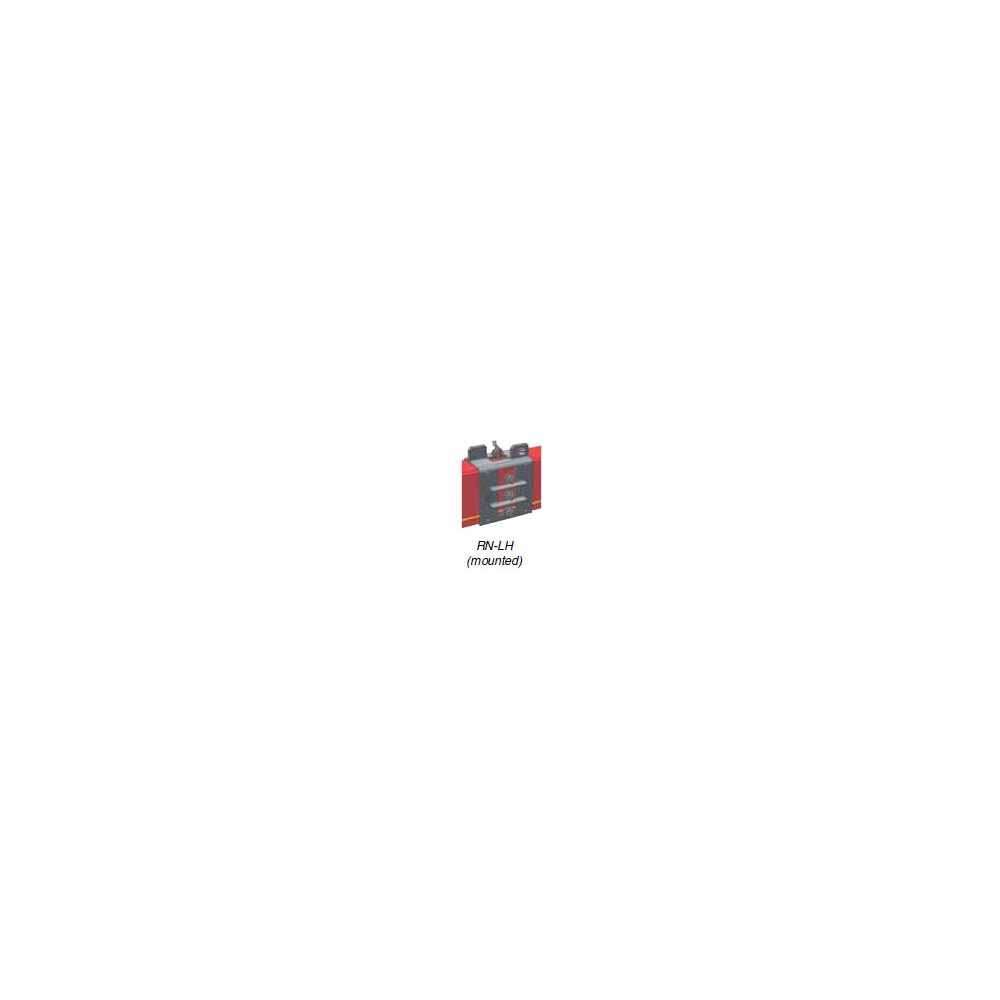

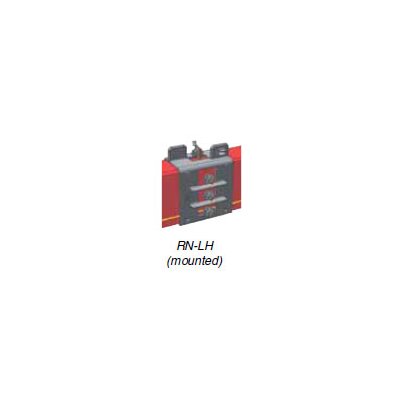

Type RN-LH
Applicable for line feed connections with continuous copper that require joints in the line feed (i.e. in multi curved systems, very long tracks etc.).
The RN-LH is composed of 2 halves that “click” together around the rail housing leaving the copper joints free. Includes bolts/nuts M6 for connections of conductors.
