General:

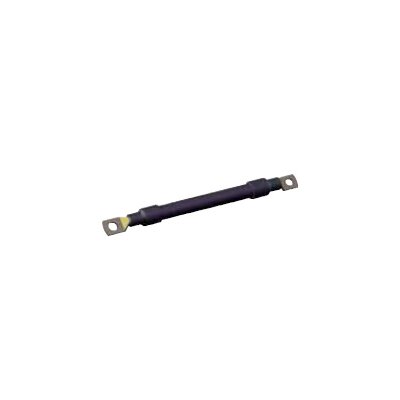

Cable 1x25 mm2, length 1,5 mtr with cable lugs.
To connect the copper conductors to cable terminal in transition box type OGV320 the transition cables OK25, OK35 or OK50 can be used. In some cases, it can replace a feeder cable with a too large outer diameter.
1 per conductor needed.
Type OK25
Cable 1x 25 mm2, length 1,5 m, with cable lugs. Max. current capacity 125A or 250A (2 cables inparallel connection) and Cu125 conductor.
Type OK35
Similar to OK25, however for max. current capacity 320A (with 2 cables in parallel connection and Cu160 conductor).
Type OK50
Similar to OK25, however for max. current capacity 400A (with 2 cables in parallel connection and Cu200 conductor).
