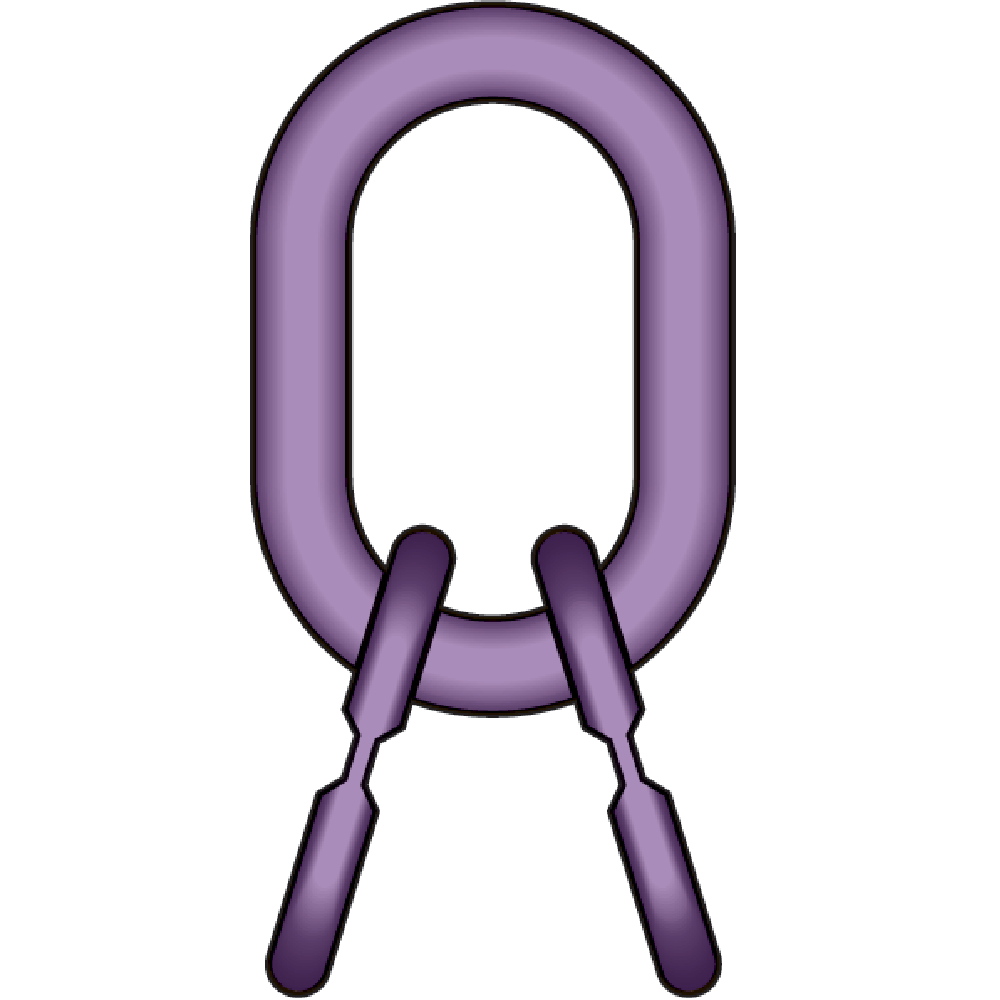

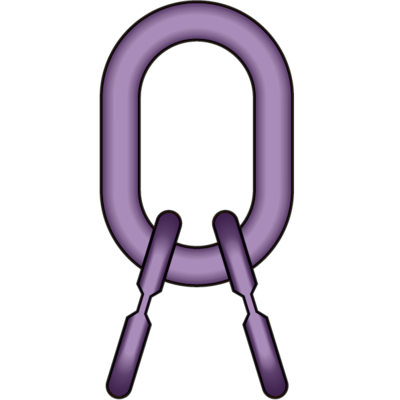

Wire Rope Lifting Sling WLS-373, master link sling

Standard steel wire rope construction: 6x36WS IWRC, 1960N/mm2
Design: Master link in one end and thimble in other ends, aluminum ferrule secured (mechanical spliced).

Load table at Technical Data -> Show table

Please specify the needed (working) length with your request.

Other rope construction and/or end-terminations such as top rings, shackles, hooks, etc.. possible on request. In that case, please contact us to discuss the possible options or specify it with your request.

After click on the “Show table” button, you will see the table with all technical details about the product.

Steel Wire Rope Sling - Steel Core ²

ø 3 mm - 7 mm 6x19M WSC -1960N/mm2 / ø8 mm and up 6X36WS IWRC -1960N/mm2 - EN 13414-1

Rope dia Ø	1-part			2-part		3-4-part		Endless

	Straight pull	Choke hitch	Basket hitch	0°−45°	45°−60°	0°−45°	45°−60°	Straight pull	Choke hitch	Basket hitch
mm	Working load limit (WLL) in tons
3	0,12	0.09	0.23	0,16	0,12	0,25	0,18	0,23	0,19	0,47
4	0,21	0,17	0,42	0,29	0,21	0,44	0,31	0,42	0,33	0,84
5	0,32	0,26	0,65	0,45	0,32	0,68	0,49	0,65	0,52	1,30
6	0,47	0,37	0,94	0,66	0,47	0,98	0,70	0,94	0,75	1,87
7	0,64	0,51	1,28	0,89	0,64	1,34	0,96	1,28	1,02	2,56
8	0,82	0,66	1,64	1,15	0,82	1,72	1,23	1,64	1,31	3,28
9	1,04	0,83	2,07	1,45	1,04	2,18	1,56	2,07	1,66	4,15
10	1,28	1,02	2,56	1,79	1,28	2,69	1,92	2,56	5,05	5,12
11	1,55	1,24	3,10	2,17	1,55	3,25	2,32	3,10	2,48	6,20
12	1,84	1,47	3,67	2,57	1,84	3,85	2,75	3,67	2,94	7,34
13	2,17	1,73	4,33	3,03	2,17	4,55	3,25	4,33	3,47	8,66
14	2,51	2,01	5,03	3,52	2,51	5,28	3,77	5,03	4,02	10,06
16	3,29	2,63	6,57	4,60	3,29	6,90	4,93	6,57	5,26	13,14
18	4,15	3.,32	8,30	5,81	4,15	8,71	6,22	8,30	6,64	16,59
20	5,12	4,10	10,24	7,17	5,12	10,75	7,68	10,24	8,19	20,48
22	6,20	4,96	12,41	8,69	6,20	13,03	9,31	12,41	9,93	24,82
24	7,38	5,90	14,76	10,33	7,38	15,5	11,07	14,76	11,81	29,51
26	8,66	6,93	17,33	12,13	8,66	18,19	13,00	17,33	13,86	34,65
28	10,04	8,03	20,08	14,06	10,04	21,08	15,06	20,08	16,06	40,16
32	13,12	10,50	26,25	18,37	13,12	27,56	19,69	26,25	21,00	52,49
36	16,59	13,67	33,19	23,23	16,59	34,84	24,89	33,19	26,55	66,37
40	20,56	16,45	41,11	28,78	20,56	43,17	30,84	41,11	32,89	82,23
44	24,78	19,82	49,56	34,69	24,78	52,04	37,17	49,56	39,65	99,12
48	29,55	36,64	59,10	41,37	29,55	62,06	44,33	59,10	47,28	118,21
52	34,69	27,75	69,38	48,57	34,69	72,85	52,04	69,38	55,51	138,76
Factor (K_L)	2	0,8	2	1,4	1	2,1	1,5	2	1,6	4
When a multi-leg sling is used in a chocker hitch, reduce the values by 20%
