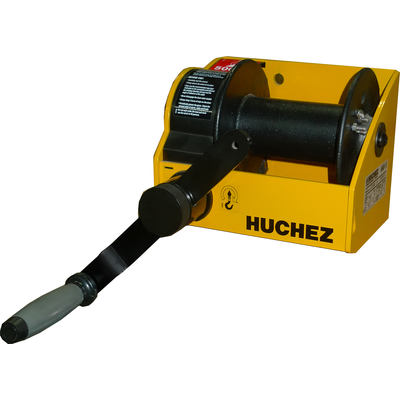

Hand wormgear winches for daily use, from 250 to 3500 kg. Availiable with painted, galvanized or stainless steel frame.
Applications:
- Lifting or pulling/hauling operation
- Wall-mounted or flat
- Industry
- Shows, sceneries
- Water treatment, water dams
- Sports rooms
- Hanging chandeliers
Technical properties:
- Compact and rugged construction with steel frame.
- Machined parts.
- Steel or cast iron drum depending on models.
- Painted, galvanised or stainless steel frames available. -

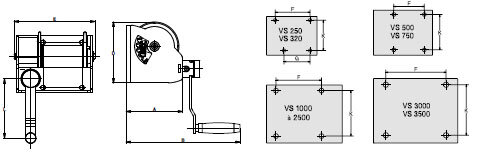

- Flat mounted or wall mounted. 4 fixation points.
- Fully protected gear system.
- Removable crank positioned on the left hand side for VS 250/320/500/750/3000/3500 and on the right hand side for VS 1000/1450/1500/2000/2500.
- Free spooling drum (except VS 250/320), only when not in load.
- Composite material automatic brake.
- Failsafe system for correct rope winding direction (patented).
Options: Wire rope and hook.
- Marking: According to standard, CE-marked
- Temperature range: -10°C to +50°C
- Finish: Painted, galvanized or stainless steel frames.
- Standard: EN 13157
