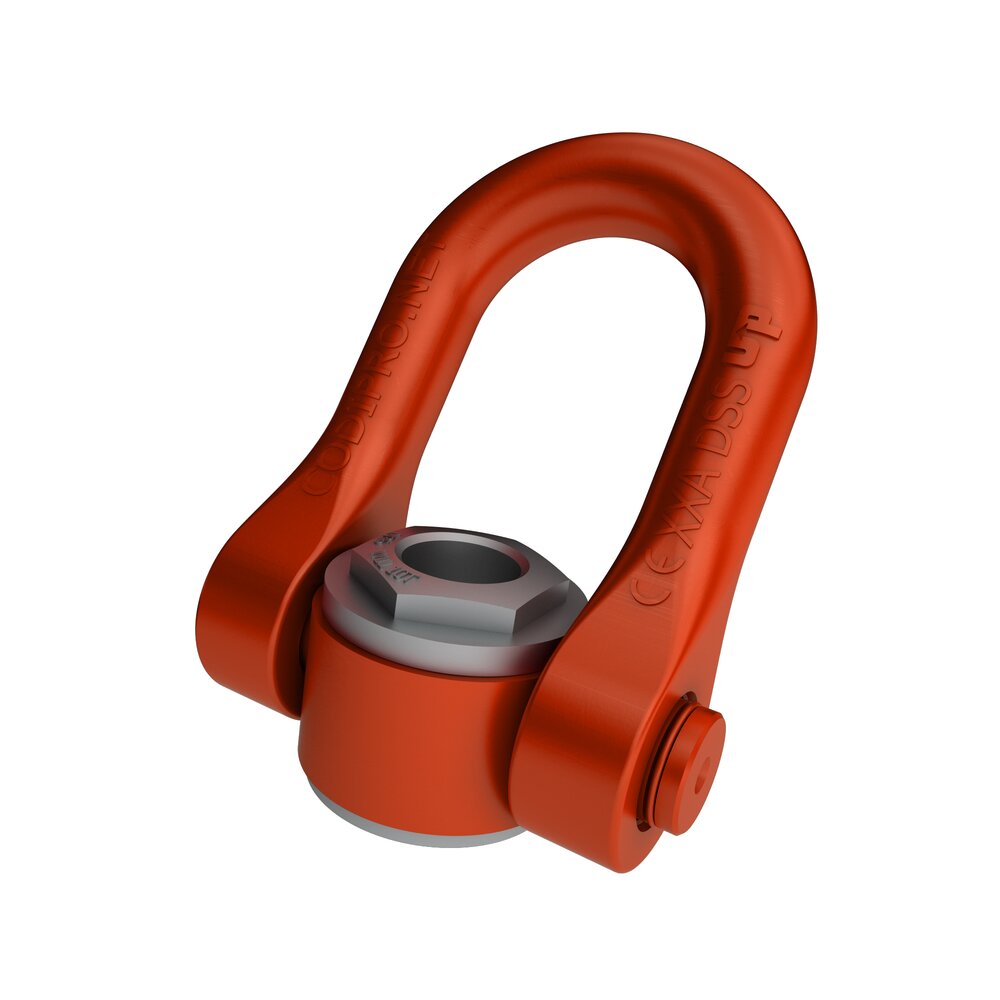

The FE DSS lifting shackle is specially designed for simultaneously lifting and rotating loads. Its double swivel action ensures perfect line up with the lifting sling. The ring can swivel under the load. The ring swivels 180° and has a rotating range of 360°.
Features:
- Swiveling under load
- Usable for any kind of lifting operation
- The tightening torque is stamped on all lifting rings in the GRADUP range.
- Material: High tensile steel
- Marking: According to standard, CE-marked
- Temperature range: -20°C up to +200°C
-
Standard:
EN 1677-1
except grade/WLL
- Safety factor: 5:1
