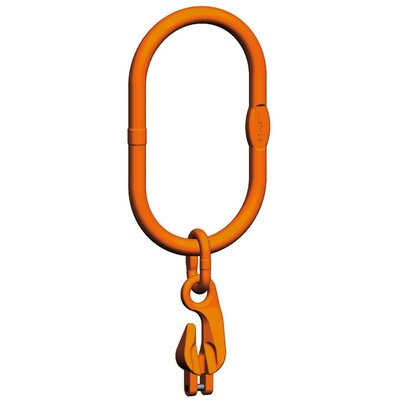

This oversize clevis master set is frequently used on mobile cranes. It consists of an LW master ring and a welded-in XKW shortening hook for the creation of I-leg chain slings in the assembled system. The chain is mounted directly into the captive coupling of the shortening element, thereby eliminating the need for an additional connecting link. Assembly and disassembly of the system by a competent person is easy and quick, without the need for special tools.
The hook functions both as a connecting link and a shortening element and the master link is suitable for crane hooks up to no. 25 according to DIN 15401 and up to no. 32 according to DIN 15402.
- Material: High duty grade 10.
- Marking: According to standard, CE-marked, Pewag or PW, winner or 10, H16, batch code and type.
- Temperature range: -40ºC up to +380°C.
- Finish: Orange powder coated.
- Standard: EN 818-4
- Safety factor: 4:1
- Grade: 10
